The ONH Systems Company designs and manufactures containerised nitrogen units operating under Pressure Swing Adsorption technology. The containerised nitrogen units produced by ONH Systems are high-efficiency equipment, reliable and easy to operate. A combination of advanced technologies and many years of experience allows us to guarantee quality at the highest world standards level. The container can be transported either by road or rail, or by sea. This solution allows mobile container transportation to remote and hard-to-reach regions.
Containerised version of the unit can be delivered and operated under any climatic conditions at ambient air temperature from -50 to +50 °C. In accordance with Customer’s technical requirements, the nitrogen unit can be installed in a block container, sandwich panelled block box, on a trailer or on a truck chassis.
Technical specifications:
- Purity: from 95.0 to 99.999 % vol N2;
- Demand: from 1 to 835 m³/hour;
- Pressure: up to 15 bar;
- Compressed gas dew point: < -40 °C.

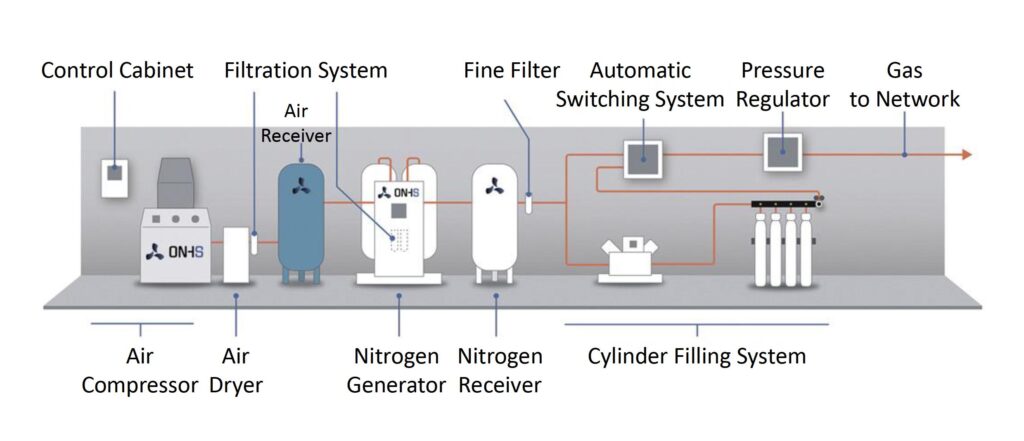

The main equipment of the containerised nitrogen unit is:
- Air compressor;
- Air dryer;
- Air treatment system;
- Air receiver;
- Nitrogen generator;
- Nitrogen receiver;
- Block container equipped with temperature and ventilation control, power supply, working area air control, as well as fire alarm and lighting systems.
The unit can be additionally equipped with following options:
- ATS cabinet and additional automatic input circuit breakers;
- Unit remote control;
- Moisture-oil separators;
- Air conditioning system.
Containerised nitrogen unit advantages:
- Low nitrogen production cost;
- Ease of operation;
- Fast output to operating parameters;
- High build quality level.
Application:
- Agriculture and food industry;
- Oil industry;
- Gas injection moulding (GAIM);
- Pharmaceutical Industry;
- Energy;
- Electronics Industry;
- Mining industry;
- Metallurgy.
Warranty for equipment supplied up to 24 months.
