The adsorption oxygen unit from the ONH Systems Company is highly efficient equipment for technical oxygen production with purity up to 99%. This technology utilises an unlimited, universal, and free resource—air. The unit allows for ensuring a continuous technological process that cannot stop due to sudden oxygen lack or absence. When you purchase equipment, your facility will produce oxygen on-site. This saves you buying, refuelling, and third-party gas delivery costs.

The Pressure Swing Adsorption method is characterised by gas produced at low cost. We design units according to individual customer requirements. They can be used both indoors and outdoors.

Adsorption Technology for Oxygen Production

The oxygen generator is the main element of the adsorption oxygen unit. The PSA (Pressure Swing Adsorption) technology is based on gas mixtures separating into high-concentration components from atmospheric air by two processes alternation — adsorption and desorption — which take place within several minutes. An adsorbent absorbs readily adsorbable components of the mixture, which is separated by passing weakly adsorbable or non-adsorbable components through an apparatus. The adsorbent absorbs gas to a state of equilibrium between adsorption and desorption. To remove adsorbed components from the adsorbent surface, temperature must be raised or pressure must be released. The non-heated PSA technology advantages include:

  • time and energy savings compared to other oxygen generation technologies because there are no heating and cooling stages for absorbing components;
  • high cycle start-up and shutdown rates, unlike cryogenic plants;
  • low energy costs;
  • long-term adsorbents use without need for replacement — once every 5 years;
  • more affordable equipment cost compared to cryogenic equipment.

Adsorption Oxygen Unit Operation Principle

To obtain oxygen, a synthetic zeolite is used, which is specially structured and has a large number of pores of a required size. The ONH Systems Company adsorption oxygen unit operation principle is the following:

  1. Nitrogen molecules are trapped into granule’s pores, releasing oxygen molecules.
  2. Two columns operate in parallel, one in operation and another in regeneration mode. This ensures virtually uninterrupted oxygen production.
  3. Oxygen is separated from the air due to nitrogen absorption by molecular granules.

Adsorption Oxygen Units Technical Specifications

Model Demand, Nm3/hour Dimensions (W×D×H), cm Weight, kg
Oxymedic 15 0,9 100 x 95 x 150 170
Oxymedic 30 1,8 130 x 95 x 160 220
Oxymedic 50 3 130 x 110 x 160 240
Oxymedic 75 4,5 140 x 110 x 160 250
Oxymedic 100 6 130 x 90 x 180 450
Oxymedic 150 9 130 x 95 x 210 650
Oxymedic 200 12 130 x 95 x 210 800
Oxymedic 250 15 130 x 95 x 210 900
Oxymedic 300 18 135 x 95 x 210 1150
Oxymedic 350 21 135 x 95 x 230 1400
Oxymedic 400 24 165 x 120 x 235 1550
Oxymedic 500 30 165 x 120 x 240 1700
Oxymedic 600 36 165 x 120 x 245 1800
Oxymedic 700 42 2*(165 x 120 x 235) 2720
Oxymedic 800 48 2*(165x 120 x 240) 3020
Oxymedic 1000 60 2*(165 x 120 x 240) 3320
Oxymedic 1200 72 3*(165 x 120 x 235) 4490
Oxymedic 1500 90 3*(165x 120 x 240) 4940

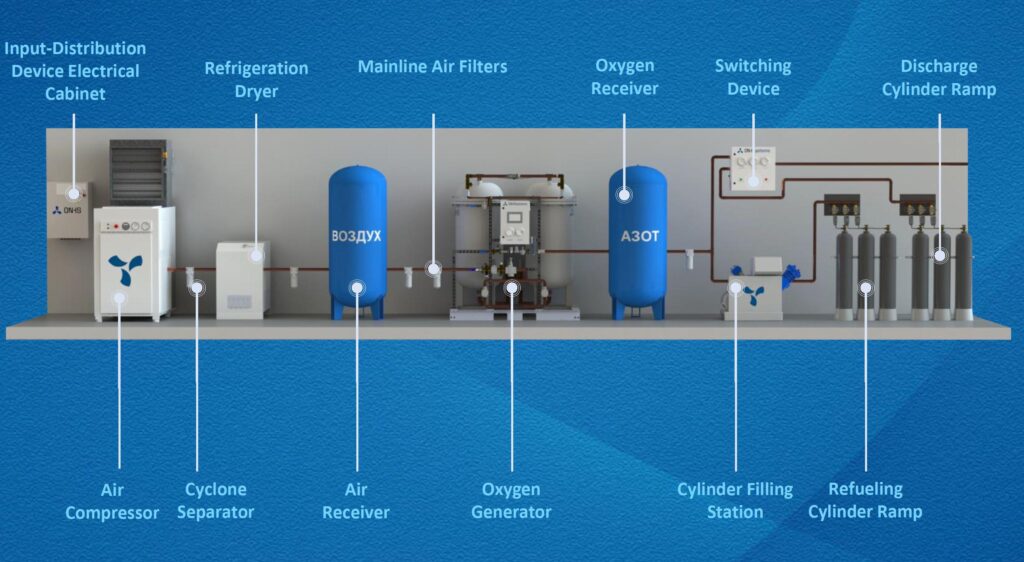

Oxygen Generation Unit Equipment

Adsorption Oxygen Units Advantages

  1. Cost reduction. You can produce the exact volume of oxygen on site. In this case, you do not have to spend money on external supplies. More than 80% of our customers recoup their investment in equipment within 2 years.
  2. Time-saving. After purchasing an adsorption oxygen unit, you are free from previously repetitive logistical procedures—orders, delivery notes, invoices, and logistics management.
  3. Operation safety. There is no need to carry heavy cylinders under high pressure and organise gas storage in cryogenic tanks.
  4. Technological processes continuity. You are no longer dependent on external oxygen supplies.
  5. Environmental friendliness. Environmental impact is significantly reduced by eliminating oxygen transportation by road.

How to purchase?

To get the price and purchase an adsorption oxygen unit, please contact us by phone on the website. Warranty for equipment supplied up to 24 months. We design and manufacture equipment according to individual requirements. We provide feasibility studies and program automated solutions. We organise installation and testing at your site, as well as maintenance and remote monitoring.
