Equipment Description

Anesthesia Gas Scavenging System is designed to provide healthcare facilities with a convenient, reliable and easy to maintain system for continuous centralised anesthetic gases evacuation.

It is also known as AGSS and is essential for safe environment in an operating theatre, maternity ward or intensive care unit, as excess and residual anesthetic gases can be very harmful to medical staff and patients even at low concentrations.

Anesthesia Gas Scavenging System Composition































  1. Central control panel
  2. Frame
  3. Vortex vacuum pump
  4. Inlet filter (optional)
Anesthesia Gas Scavenging Systems

Main Features

  • Vortex vacuum pumps provide continuous operation in 24/7 mode. Single or duplex (redundant) types available.
  • Include check valve and filtration system.
  • Meet GOST ISO 8835-3-2012 standard.
  • Remote alarm notification.
  • Can be equipped with remote control panel and adsorber to collect nitrous oxide or other anesthesia gases during anesthesia or sedation.

Technical Specifications

Anesthesia gas scavenging system main features

Model* Demand, l/min Demand, Nm³/hour Construction type Power, kW Power supply parameters
AGSS-520-S** 1х520 1х31 Single 1х0,75 380V , 50Hz
AGSS-520-D 2х520 2х31 Duplex 2х0,75
AGSS-1560-S 1х1560 1х94 Single 1х1,5
AGSS-1560-D 2х1560 2х94 Duplex 2х1,5
AGSS-2860-S 1х2860 1х172 Single 1х3
AGSS-2860-D 2х2860 2х172 Duplex 2х3
AGSS-RCP Anesthesia Gas Scavenging System Remote Control Panel
AGSS-A AGSS Adsorber for nitrous oxide or other anesthesia gases during anesthesia or sedation safe collection. Can be mounted on a wall, on a separate frame or supplied as part of a station

* Pumps type: oil-free

** AGSS-520-S:

AGSS – Anesthesia Gas Scavenging System, 520 – capacity (demand), l/min, Single construction type

(S/D – Single/Duplex)

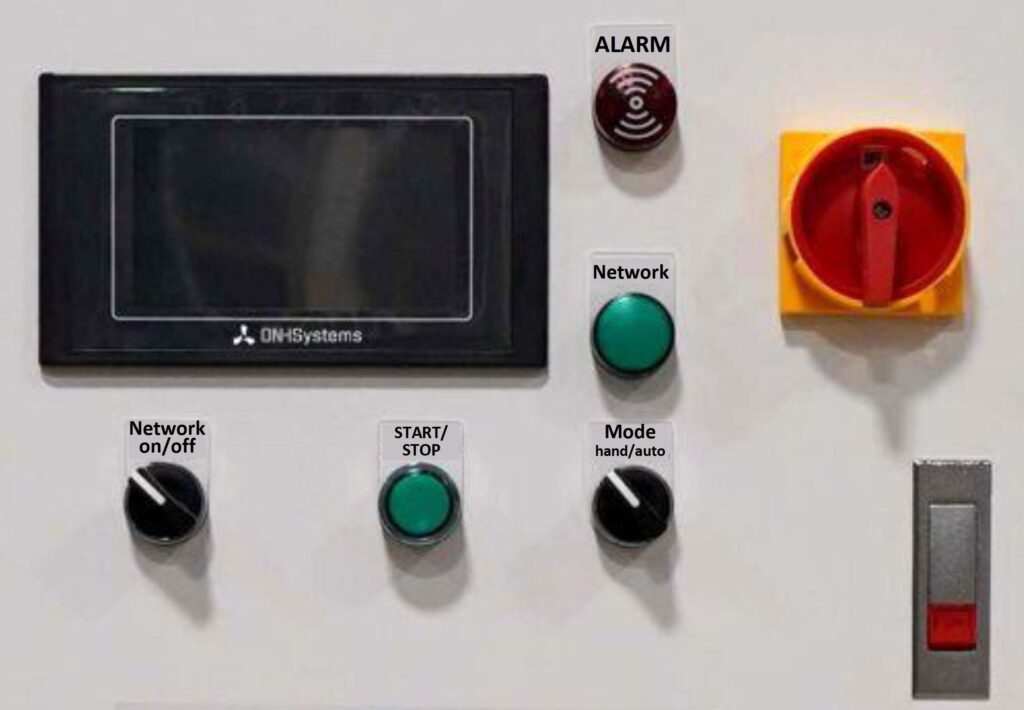

Intuitive control panel

Anesthesia gas scavenging system is very easy to use due to an intelligent control panel.





























Control panel provides:

  • Switching between vacuum pumps;
  • Remote control;
  • Error notifications receiving;
  • Information if maintenance is required.
